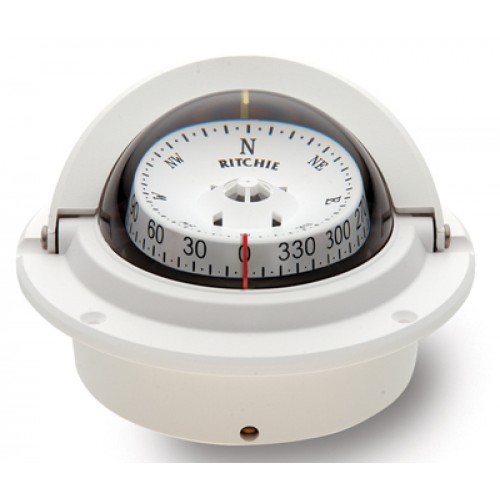

Ritchie Navigation F83W - Voyager Compass Flush Mount

Ritchie Navigation F83W - Voyager Compass Flush Mount
Ritchie Navigation F83W - Voyager Compass Flush Mount

Shipping Rates

UK Shipping cost: £3.99
Europe Shipping cost: £16.54
Rest of World Shipping cost: £22.48
USA cost: £22.48
£149.85
(Inclusive)
  • Stock: In Stock
  • Model: F83W

Manufacturer Brochure



3" CombiDamp Dia
Easily Installed into a 4 1/8" hole.
Exclusive Built-in Green NiteVu Night Illumination
Built-in Compensators to Easily Adjust for Deviation
Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement
Powerful DirectiveForce Magnets for Fast Heading Lock-on Movable Sun Shield
45 Degree Lubber Lines
High Temperature Composite Construction for Extended Operating Range
100% Repairable
Exclusive 5-Year Ritchie Warranty

Features
  • Card Graduations: 5.0 Degrees
  • Compensators: Integral
  • Back lighting: 12 Volt Dc
  • Body colour: White
  • Card colour: White
  • Card style: Conical
  • Card size: 76mm
  • 5 Years Warranty

Dimensions
  • Height: 55mm
  • Width: 133mm
  • Panel Hole: 105mm
  • Depth below Panel: 50mm
Main Characteristics
Compass FamilyRitchie Navigation Voyager
Mounting TypeFlush Mount
Body ColourWhite
Card Details
Card Graduations5° Graduations
Apparent Diameter76mm
Card ColourWhite
Card TypeConical
